Reinforcement Learning by QLearning - The case of the stick game¶
In this notebook, we give an introduction to Q-Learning that is a framework to perform reinforcement learning. We provide an application to the stick game. This notebook is a follow-up of another notebook on Q-learning with an application maze escape. http://romain.raveaux.free.fr/document/ReinforcementLearningbyQLearning.html
The goals :¶
- An introduction to Q-Learning
- An application to the stick game
- Code in Python base Numpy and Matplotlib
Author : Romain Raveaux¶
Why a follow-up notebook¶
This notebook :http://romain.raveaux.free.fr/document/ReinforcementLearningbyQLearning.html . This notebook is on Q-learning for a single player game that is to say the Escape the maze game.
In this notebook, we want to explore a 2-players game : The stick game¶
Reinforcement Learning¶
We give some definitions that are mostly taken from (https://en.wikipedia.org/wiki/Reinforcement_learning).
Reinforcement learning (RL)
- is an area of machine learning concerned with how software agents ought to take actions in an environment so as to maximize some notion of cumulative reward.
- is one of three basic machine learning paradigms, alongside supervised learning and unsupervised learning.
Supervised Learning (SL) :
- It aims to learn a function $f$ that maps $\mathcal{X} \to \mathcal{Y}$ where $\mathcal{X}$ is the input domain and $\mathcal{Y}$ is the output domain. $f$ can be a composition of functions $f=f_1 \circ f_2 \circ \cdots f_k$. The learning stage must exploit pairs $(x \in \mathcal{X} ,y \in \mathcal{Y})$.
Reinforcement learning (RL)
- It is similar from SL in such a way that the goal is to learn a function $f$ that maps $\mathcal{X} \to \mathcal{Y}$. $f$ can also be a composition of functions $f=f_1 \circ f_2 \circ \cdots f_k$. In RL, sub-functions are also called actions.
- It differs from $\textbf{supervised learning}$ in that the learning stage exploits pairs $(x \in \mathcal{X} ,\overline{y} \in \overline{\mathcal{Y}})$. Where $\overline{\mathcal{Y}}$ is domain of incomplete outputs such that $\overline{y} \subset y$.
The typical framing of a Reinforcement Learning (RL) scenario: an agent takes actions in an environment, which is interpreted into a reward and a representation of the state, which are fed back into the agent. The environment is typically formulated as a Markov decision process (MDP)
Markov decision process¶
A Markov decision process is a 4-tuple ${\displaystyle (S,A,P,R)}$, where
- a set of environment and agent states, $S$;
- a set of actions, $A$, of the agent;
- $P={\displaystyle \Pr(s_{t+1}=s'\mid s_{t}=s,a_{t}=a)}$ is the probability of transition from state ${\displaystyle s}$ to state ${\displaystyle s'}$ under action ${\displaystyle a}$. $P: A \times S \to \mathbb{R}^S $
- ${\displaystyle R(s,s',a)}$ is the immediate reward after transition from ${\displaystyle s}$ to ${\displaystyle s'}$ with action ${\displaystyle a}$. $R: S \times S \times A \to \mathbb{R}$
Optimization problem with Markov decision process : Finding the best policy $\pi$¶
The core problem of Markov decision processes is to find a "policy" for the decision maker: a function $\pi$ that specifies the action $a=\pi(s)$ that the decision maker will choose when in state $s$. In the Markov decision process, we want to maximize the sum of the rewards over all time steps.
$$\pi^*=arg \max_{\pi} \sum_{t=1}^T R(s_t,s^*,\pi(a^*)) $$ $$s^*,a^*=arg \max_{s',a} \Pr(s'\mid s_{t},a)$$
The goal is to choose a policy $\pi$ that will maximize some cumulative function of the random rewards, typically the expected discounted sum over a potentially infinite horizon:
${\displaystyle E[\sum _{t=0}^{\infty }{\gamma ^{t}R(a_t,s_{t},s_{t+1})}]}$ (where we choose ${\displaystyle a_{t}=\pi (s_{t})}$, i.e. actions given by the policy). And the expectation is taken over ${\displaystyle s_{t+1}\sim P}({a_{t},s_{t},s_{t+1})}$ where $\gamma$ is the discount factor satisfying ${\displaystyle 0\leq \ \gamma \ \leq \ 1}$, which is usually close to 1.
Decision phase¶
Once a Markov decision process is combined with a policy in this way, this fixes the action for each state and the resulting combination behaves like a Markov chain (since the action chosen in state {\displaystyle s}s is completely determined by $\pi(s)$ and $\Pr(s_{t+1}=s'\mid s_{t}=s,a_{t}=a)$ reduces to $\Pr(s_{t+1}=s'\mid s_{t}=s)$, a Markov transition matrix).
Exploration and Exploitation¶
One of the challenges that arise in reinforcement learning, and not in other kinds of learning, is the trade-of between exploration and exploitation. To obtain a lot of reward, a reinforcement learning agent must prefer actions that it has tried in the past and found to be e↵ective in producing reward. But to discover such actions, it has to try actions that it has not selected before. The agent has to exploit what it has already experienced in order to obtain reward, but it also has to explore in order to make better action selections in the future.
Q-learning¶
The goal of Q-learning is to learn a policy $\pi(s)$, which tells an agent what action to take under what state.
Q-learning finds a policy that is optimal in the sense that it maximizes the expected value of the total reward over any and all successive steps, starting from the current state.
"Q" names the function that returns the reward used to provide the reinforcement and can be said to stand for the "quality" of an action taken in a given state.
$$Q: S \times A \to \mathbb{R} $$
Before learning begins, $Q$ is initialized to a possibly arbitrary fixed value (chosen by the programmer). Then, at each time $t$ the agent selects an action $a_{t}$, observes a reward $r_{t}$, enters a new state $s_{t+1}$ (that may depend on both the previous state $s_{t}$ and the selected action), and $Q$ is updated. The core of the algorithm is a simple value iteration update, using the weighted average of the old value and the new information:
${\displaystyle Q^{new}(s_{t},a_{t})\leftarrow (1-\alpha )\cdot \underbrace {Q(s_{t},a_{t})} _{\text{old value}}+\underbrace {\alpha } _{\text{learning rate}}\cdot \overbrace {{\bigg (}\underbrace {r_{t}} _{\text{reward}}+\underbrace {\gamma } _{\text{discount factor}}\cdot \underbrace {\max _{a}Q(s_{t+1},a)} _{\text{estimate of optimal future value}}{\bigg )}} ^{\text{learned value}}}$ where ${\displaystyle r_{t}}$ is the reward received when moving from the state $s_{{t}}$ to the state $s_{t+1}$, and $\alpha$ is the learning rate $0<\alpha \leq 1$).
Discount factor $\gamma$¶
The discount factor $\gamma$ determines the importance of future rewards. A factor of 0 will make the agent "myopic" (or short-sighted) by only considering current rewards, i.e. $r_{t}$ (in the update rule above), while a factor approaching 1 will make it strive for a long-term high reward.
Exploring the action state space¶
In the learning phase, the state space of action $a_t$ must be explored. This is achieved by the concerp of exploration and exloitation.
Exploration and Exploitation¶
One of the challenges that arise in reinforcement learning, and not in other kinds of learning, is the trade-of between exploration and exploitation. To obtain a lot of reward, a reinforcement learning agent must prefer actions that it has tried in the past and found to be e↵ective in producing reward. But to discover such actions, it has to try actions that it has not selected before. The agent has to exploit what it has already experienced in order to obtain reward, but it also has to explore in order to make better action selections in the future.
Epsilon-greedy policy $\pi(s,\epsilon,rnd)$¶
$\epsilon$ is the probabiliy of exploration. Let $rnd$ be a random number between 0 and 1. $$\begin{eqnarray} \epsilon < rnd \quad& a^*=\pi(s)=random_a \, Q(s,a) &\quad Exploration \\ \epsilon \geq rnd \quad& a^*=\pi(s)= \max_a Q(s,a) & \quad Exploitation \\ \end{eqnarray}$$
Q-Learning Algorithm¶
The case of a 2-players game¶

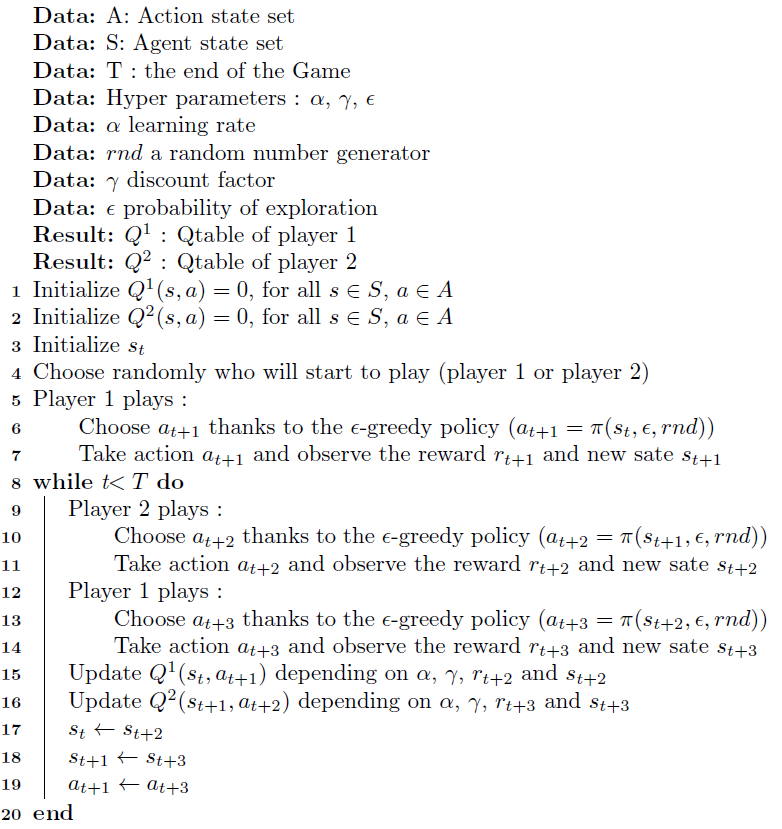

Q-Learning Algorithm for 2 players. The case of a losing game.¶
A losing game is a game where the winner wins because the opponent makes a wrong move a lose the game. The stick game is a losing game. A player wins when the opponent takes the last stick.
The key idea is to train two players at the time. Another key point is that the reward depends on the failure or the sucess of the other player. If player one made a move that led to the KO of the player two then player one move should be rewarded.
In the above algorithm, it is possible to make player 2 a random player by fixing $\epsilon$ to 1. Note that if player 2 is stupid then player 1 might not be very clever to win :-)
The game of sticks¶
The game of sticks is a variation of the Nim game.¶
Nim is a combinatorial game, where two players alternately take turns in taking objects from several heaps. The only rule is that each player must take at least one object on their turn, but they may take more than one object in a single turn, as long as they all come from the same heap.
In the game of sticks, there are 12 sticks and each player can take from 1 to 3 sticks at the time. The player that takes the last stick lose the game¶
Modeling the game¶
The 12 sticks will be modeled by a vector of 12 binary variables. V[x] refers to a cell of the vector. Each cell has a value :
- 1 saying that the stick is present
- 0 saying that the stick is absent
An action can take the following values : $A=\{1,2,3\}$. 1, 2 or 3 sticks cane be removed
The agent can take the following values : $S=\{0,\cdots, 11\}$. One value corresponds to one location (x) of the vector V. State 11 corresponds to the twelfth stick, ..., State 0 corresponds to the first stick.
Start to code¶
Let us define some import to manage matrices and plots¶
import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline
Let us define the sticks¶
nbsticks=12
V=np.ones((nbsticks,1))
#Print the sticks
print("V.shape=",V.shape)
print("V\n",V)
#Plot the sticks
fig=plt.figure(1)
ax = fig.add_subplot(1, 1, 1)
plt.xlim(0,12)
plt.ylim(0,1)
grid_x_ticks = np.arange(0, 12, 1)
grid_y_ticks = np.arange(0, 1, 1)
ax.set_xticks(grid_x_ticks , minor=True)
ax.set_yticks(grid_y_ticks , minor=True)
plt.imshow(V.T,cmap='hot')
plt.grid(b=True,which='both')
plt.title("The sticks")
We define the set of actions A, the set of agent states S and the Q table.¶
A = np.array([1,2,3])
S =[]
for i in range(0,nbsticks):
S.append(i)
S=np.array(S)
print("S.shape=",S.shape)
print("A.shape=",A.shape)
Q1=np.zeros((S.shape[0],A.shape[0]))
Q2=np.zeros((S.shape[0],A.shape[0]))
print("Q1.shape=",Q1.shape)
def step(action,agentstate,V):
# Let's take action
done=False
#We update the state after moving
newagentstate=agentstate-action
#We get a reward
if agentstate-action>0:
#if there are still some sticks left then we are good
reward=0
#We put to 0 all the sticks that are taken
V[newagentstate:agentstate]=0
else:
V[0:V.shape[0]-1]=0
#you lose so a good reward for the player that could make him lose !!!
reward=1
# the game is over
done=True
return newagentstate,reward,done
V=np.ones((nbsticks,1))
print(step(1,12,V) )
print(V)
print(step(3,11,V) )
print(V)
print(step(3,8,V) )
print(V)
print(step(3,5,V) )
print(V)
print(step(2,2,V) )
print(V)
fig = plt.figure() # just for display
ax = fig.add_subplot(1, 1, 1)
#plt.ylim(0,12)
plt.xlim(0,1)
#grid_x_ticks = np.arange(0, 12, 1)
grid_y_ticks = np.arange(0, 12, 1)
ax.set_yticks(grid_y_ticks , minor=True)
ax.set_yticklabels(grid_y_ticks , minor=True)
plt.grid(b=True,which='both')
state=12 #initial state of the agent
done=False
listimages=[] # just for display : store images
V=np.ones((nbsticks,1))
ttl = plt.text(0, -1, "Action="+str(0)+" --> So the remaining sticks= "+str(12), horizontalalignment='right', verticalalignment='bottom', fontsize="small")
im = plt.imshow(V, animated=True,vmin=0, vmax=1,cmap='binary') # display sticks
listimages.append([ttl,im]) # display sticks
while done != True: # Move until the game is over
action = np.random.choice(A) # Choose a random action
newtstate,reward,end=step(action,state,V) # Move according to the action
print(action,state,newtstate,end) # print
state=newtstate # update state
done=end # update are we done or not ?
ttl = plt.text(0, -1, "Action="+str(action)+" --> So the remaining sticks= "+str(newtstate), horizontalalignment='right', verticalalignment='bottom', fontsize="small")
im = plt.imshow(V, animated=True,vmin=0, vmax=1,cmap='binary') # display sticks
listimages.append([ttl,im]) # display sticks
Let's animate¶
from matplotlib import animation, rc
from IPython.display import HTML
ani = animation.ArtistAnimation(fig, listimages, interval=2000, blit=True,
repeat_delay=100)
ani.save('RandomSticks.mp4')
plt.show()
HTML(ani.to_html5_video())
Time to learn how to play¶
Code : Q-Learning¶
$\epsilon$-greeedy policy¶
# Choose an action from the espilon greedy policy
def ChooseActionFromPolicy(A,epsilon,Q,state):
#we remove one to go from states to array indices
statee=state-1
rnd=np.random.random()
if rnd<epsilon:
action = np.random.choice(A)
else:
action = Q[statee,:].argmax()+1
return action
Update the Q Table¶
# Update the Q table (see equation above)
def UpdateQ(Q,state,action,newstate,reward,alpha,gamma):
#we remove one to go from states to array indices
statee=state-1
newstatee=newstate-1
actione=action-1
firstterm=(1-alpha)*Q[statee,actione]
secondterm=gamma*Q[newstatee,:].max()
thirdterm=alpha*(reward+secondterm)
res=firstterm+thirdterm
Q[statee,actione]=res
Play One Game and learn the Q table¶
# Debug function to do some display
def debugfunction(at,s,V,Q1,Q2,epsilon,t,player,listimages):
#code for display
ttl = plt.text(3, 12,
"Sticks Qtable-Player 1 Qtable-Player 2"+
"\nAction player "+str(player)+"="+str(at)+" and remaining sticks="+str(s)+
"| Number of games="+str(t)+"| epsilon="+"{:.2f}".format(epsilon)
,horizontalalignment='right', verticalalignment='top', fontsize="small")
im1 = axarr[0].matshow(V, animated=True,vmin=0, vmax=1,cmap='binary')
im2 = axarr[1].matshow(Q1, animated=True,cmap='gray')
im3 = axarr[2].matshow(Q2, animated=True,cmap='gray')
listimages.append([im1,im2,im3,ttl])
# Let's play one game
def OneGameLearning(A,Q1,Q2,V,epsilon1,espilon2,alpha,gamma,listimages,t,debug):
if debug==True:
debugfunction(-1,12,V,Q1,Q2,-1,t,-1,listimages)
s=12 #initial state
done = False
# Player one plays first
at1= ChooseActionFromPolicy(A,epsilon1,Q1,s) #choose an action
st1,rt1,end1=step(at1,s,V) # Move according to the action
#code for debug and display
if debug==True:
print("s=",s," Q1=",Q1[s-1,:])
print("at1=",at1," st1=",st1)
debugfunction(at1,st1,V,Q1,Q2,epsilon1,t,1,listimages)
#end code for debug and display
while done != True : # Move until a player lose
# Player two plays
at2= ChooseActionFromPolicy(A,epsilon2,Q2,st1) #choose an action
st2,rt2,end2=step(at2,st1,V) # Move according to the action
#Update Q1
UpdateQ(Q1,s,at1,st2,rt2,alpha,gamma)
if debug==True:
print("st1=",st1," Q2=",Q2[st1-1,:])
print("at2=",at2," st2=",st2)
debugfunction(at2,st2,V,Q1,Q2,epsilon2,t,2,listimages)
#player 1 has won
if end2 == True:
return 1
# Player one plays
at3= ChooseActionFromPolicy(A,epsilon1,Q1,st2) #choose an action
st3,rt3,end1=step(at3,st2,V) # Move according to the action
#Update Q2
UpdateQ(Q2,st1,at2,st3,rt3,alpha,gamma)
if debug==True:
print("st2=",st2," Q1=",Q1[st2-1,:])
print("at3=",at3," st3=",st3)
debugfunction(at3,st3,V,Q1,Q2,epsilon1,t,1,listimages)
#player 2 has won
if end1 == True:
return 2
s=st2
st1=st3
at1=at3
done=end2
return 0
# the code for display
# we create figure for animation
f, axarr = plt.subplots(1,3)
listimages=[] # Just for the animation
axarr[0].set_xlim([0, 1])
axarr[0].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[0].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[1].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[1].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[2].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[2].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[0].grid(b=True,which='both')
axarr[1].grid(b=True,which='both')
axarr[2].grid(b=True,which='both')
####################
# Q learning runnning
####################
#Let's initialize the Q Table
Q1=np.zeros((S.shape[0],A.shape[0]))
Q2=np.zeros((S.shape[0],A.shape[0]))
#Let's initialize the vector to 1
V=np.ones((nbsticks,1))
print("S=",S)
print("S.shape=",S.shape)
print("A=",A)
print("A.shape=",A.shape)
print("Q1.shape=",Q1.shape)
print("Q2.shape=",Q1.shape)
print("V=",V.T)
print("V.shape=",V.shape)
#Let's define some hyper parameters
alpha=0.01 #learing rate
gamma=0.9 #Discount factor
epsilon1=0.3 #probability of exploration we want to get at the end
epsilon2=1 #probability of exploration we want to get at the end
nbgames=5 # The number of trials, number of games
statsnbplayeronewins=0
for t in range(nbgames):
# run one game
#Let's initialize the vector to 1
V=np.ones((nbsticks,1))
playeronewins=OneGameLearning(A,Q1,Q2,V,epsilon1,epsilon2,alpha,gamma,listimages,t,True)
if playeronewins==1:
statsnbplayeronewins+=1
print("t=",t, "epsilon1=",epsilon1," player ",playeronewins," wins")
statsnbplayeronewins/=float(nbgames)
statsnbplayeronewins*=100
print("Fin du QLearning !!!")
print("Percentage of winning games for player two : "+str(statsnbplayeronewins))
f.colorbar(listimages[4][0], ax=axarr[2])
from matplotlib import animation, rc
from IPython.display import HTML
ani = animation.ArtistAnimation(f, listimages, interval=8000, blit=True,
repeat_delay=100)
ani.save('QlearningSticks.mp4')
plt.show()
HTML(ani.to_html5_video())
Let us run 10 000 games. The goal is to see what is learnt. We want to see how the Qtables look like after 10 000 games. Player 2 is a random player¶
f, axarr = plt.subplots(1,3)
listimages=[] # Just for the animation
axarr[0].set_xlim([0, 1])
axarr[0].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[0].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[1].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[1].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[2].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[2].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[0].grid(b=True,which='both')
axarr[1].grid(b=True,which='both')
axarr[2].grid(b=True,which='both')
####################
# Q learning runnning
####################
#Let's initialize the Q Table
Q1=np.zeros((S.shape[0],A.shape[0]))
Q2=np.zeros((S.shape[0],A.shape[0]))
#Let's initialize the vector to 1
V=np.ones((nbsticks,1))
print("S=",S)
print("S.shape=",S.shape)
print("A=",A)
print("A.shape=",A.shape)
print("Q1.shape=",Q1.shape)
print("Q2.shape=",Q1.shape)
print("V=",V.T)
print("V.shape=",V.shape)
#Let's define some hyper parameters
alpha=0.01 #learing rate
gamma=0.9 #Discount factor
epsilon1=0.3 #probability of exploration we want to get at the end
epsilon2=1 #probability of exploration we want to get at the end
nbgames=10000 # The number of trials, number of games
statsnbplayeronewins=0
for t in range(nbgames):
# run one game
V=np.ones((nbsticks,1))
playeronewins=OneGameLearning(A,Q1,Q2,V,epsilon1,epsilon2,alpha,gamma,listimages,t,False)
if playeronewins==1:
statsnbplayeronewins+=1
#print("t=",t, "epsilon1=",epsilon1," player ",playeronewins," wins")
statsnbplayeronewins/=float(nbgames)
statsnbplayeronewins*=100
print("Fin du QLearning !!!")
print("Percentage of winning games for player one : "+str(statsnbplayeronewins))
ttl = plt.text(3, 12,
"Sticks Qtable-Player 1 Qtable-Player 2"+
"\nNumber of games="+str(t)+"| epsilon1="+"{:.2f}".format(epsilon1)+
"| Remaining sticks="+str(12)+" and Action player="+str(0)
,horizontalalignment='right', verticalalignment='top', fontsize="small")
im1 = axarr[0].matshow(V, animated=True,vmin=0, vmax=1,cmap='binary')
im2 = axarr[1].matshow(Q1, animated=True,cmap='gray')
im3 = axarr[2].matshow(Q2, animated=True,cmap='gray')
listimages.append([im1,im2,im3,ttl])
f.colorbar(im3,ax=axarr[2])
Comment on the winning rate of player 1¶
It is closed to 70 percent that is related to percentage of randomness (30 percent)¶
Comment on the image above :¶
Let us see Qtable1 : Qtable for player 1¶
From state 4 (row 3) : player 1 will take 3 sticks. Player 2 will have only 1 stick left and player 2 will lose.¶
From state 3 (row 2) : player 1 will take 2 sticks. Player 2 will have only 1 stick left and player 2 will lose.¶
From state 1 (row 1) : player 1 will take 1 stick. Player 2 will have only 1 stick left and player 2 will lose.¶
....¶
Let's us play one game without learning. Player 1 does exploitation all the time. Player 2 is a random player.¶
f, axarr = plt.subplots(1,3)
listimages=[] # Just for the animation
axarr[0].set_xlim([0, 1])
axarr[0].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[0].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[1].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[1].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[2].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[2].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[0].grid(b=True,which='both')
axarr[1].grid(b=True,which='both')
axarr[2].grid(b=True,which='both')
####################
# Q learning runnning
####################
V=np.ones((nbsticks,1))
print("S=",S)
print("S.shape=",S.shape)
print("A=",A)
print("A.shape=",A.shape)
print("Q1.shape=",Q1.shape)
print("Q1=",Q1)
print("Q2.shape=",Q1.shape)
print("V=",V.T)
print("V.shape=",V.shape)
#Let's define some hyper parameters
alpha=0.01 #learing rate
gamma=0.9 #Discount factor
epsilon1=0 #probability of exploration we want to get at the end
epsilon2=1 #probability of exploration we want to get at the end
nbgames=1 # The number of trials, number of games
statsnbplayeronewins=0
for t in range(nbgames):
# run one game
V=np.ones((nbsticks,1))
playeronewins=OneGameLearning(A,Q1.copy(),Q2.copy(),V,epsilon1,epsilon2,alpha,gamma,listimages,t,True)
if playeronewins==1:
statsnbplayeronewins+=1
print("t=",t, "epsilon1=",epsilon1," player ",playeronewins," wins")
statsnbplayeronewins/=float(nbgames)
statsnbplayeronewins*=100
print("Fin du QLearning !!!")
print("Percentage of winning games for player one : "+str(statsnbplayeronewins))
ttl = plt.text(3, 12,
"Sticks Qtable-Player 1 Qtable-Player 2"+
"\nNumber of games="+str(t)+"| epsilon1="+"{:.2f}".format(epsilon1)+
"| Remaining sticks="+str(12)+" and Action player="+str(0)
,horizontalalignment='right', verticalalignment='top', fontsize="small")
im1 = axarr[0].matshow(V, animated=True,vmin=0, vmax=1,cmap='binary')
im2 = axarr[1].matshow(Q1, animated=True,cmap='gray')
im3 = axarr[2].matshow(Q2, animated=True,cmap='gray')
listimages.append([im1,im2,im3,ttl])
f.colorbar(im3,ax=axarr[2])
Let us create a video¶
from matplotlib import animation, rc
from IPython.display import HTML
ani = animation.ArtistAnimation(f, listimages, interval=8000, blit=True,
repeat_delay=100)
ani.save('QlearningSticksPlay.mp4')
plt.show()
HTML(ani.to_html5_video())
Now let us see how strong is player 1 on 10000 games against a random player¶
f, axarr = plt.subplots(1,3)
listimages=[] # Just for the animation
axarr[0].set_xlim([0, 1])
axarr[0].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[0].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[1].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[1].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[2].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[2].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[0].grid(b=True,which='both')
axarr[1].grid(b=True,which='both')
axarr[2].grid(b=True,which='both')
####################
# Q learning runnning
####################
V=np.ones((nbsticks,1))
print("S=",S)
print("S.shape=",S.shape)
print("A=",A)
print("A.shape=",A.shape)
print("Q1.shape=",Q1.shape)
print("Q1=",Q1)
print("Q2.shape=",Q1.shape)
print("V=",V.T)
print("V.shape=",V.shape)
#Let's define some hyper parameters
alpha=0.01 #learing rate
gamma=0.9 #Discount factor
epsilon1=0 #probability of exploration we want to get at the end
epsilon2=1 #probability of exploration we want to get at the end
nbgames=10000 # The number of trials, number of games
statsnbplayeronewins=0
for t in range(nbgames):
# run one game
V=np.ones((nbsticks,1))
playeronewins=OneGameLearning(A,Q1.copy(),Q2.copy(),V,epsilon1,epsilon2,alpha,gamma,listimages,t,False)
if playeronewins==1:
statsnbplayeronewins+=1
#print("t=",t, "epsilon1=",epsilon1," player ",playeronewins," wins")
statsnbplayeronewins/=float(nbgames)
statsnbplayeronewins*=100
print("Fin du QLearning !!!")
print("Percentage of winning games for player one : "+str(statsnbplayeronewins))
ttl = plt.text(3, 12,
"Sticks Qtable-Player 1 Qtable-Player 2"+
"\nNumber of games="+str(t)+"| epsilon1="+"{:.2f}".format(epsilon1)+
"| Remaining sticks="+str(12)+" and Action player="+str(0)
,horizontalalignment='right', verticalalignment='top', fontsize="small")
im1 = axarr[0].matshow(V, animated=True,vmin=0, vmax=1,cmap='binary')
im2 = axarr[1].matshow(Q1, animated=True,cmap='gray')
im3 = axarr[2].matshow(Q2, animated=True,cmap='gray')
listimages.append([im1,im2,im3,ttl])
f.colorbar(im3,ax=axarr[2])
Player 1 should have won all games. The learning of the Qtable was good enough to discover the winning strategy. Why ? It is harder to learn when the opponent is a random player. Let us give to player 2 some cleverness by decreasing the epsilon value to 0.3¶
f, axarr = plt.subplots(1,3)
listimages=[] # Just for the animation
axarr[0].set_xlim([0, 1])
axarr[0].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[0].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[1].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[1].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[2].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[2].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[0].grid(b=True,which='both')
axarr[1].grid(b=True,which='both')
axarr[2].grid(b=True,which='both')
####################
# Q learning runnning
####################
#Let's initialize the Q Table
Q1=np.zeros((S.shape[0],A.shape[0]))
Q2=np.zeros((S.shape[0],A.shape[0]))
#Let's initialize the vector to 1
V=np.ones((nbsticks,1))
print("S=",S)
print("S.shape=",S.shape)
print("A=",A)
print("A.shape=",A.shape)
print("Q1.shape=",Q1.shape)
print("Q2.shape=",Q1.shape)
print("V=",V.T)
print("V.shape=",V.shape)
#Let's define some hyper parameters
alpha=0.01 #learing rate
gamma=0.9 #Discount factor
epsilon1=0.3 #probability of exploration we want to get at the end
epsilon2=0.3 #probability of exploration we want to get at the end
nbgames=10000 # The number of trials, number of games
statsnbplayeronewins=0
for t in range(nbgames):
# run one game
V=np.ones((nbsticks,1))
playeronewins=OneGameLearning(A,Q1,Q2,V,epsilon1,epsilon2,alpha,gamma,listimages,t,False)
if playeronewins==1:
statsnbplayeronewins+=1
#print("t=",t, "epsilon1=",epsilon1," player ",playeronewins," wins")
statsnbplayeronewins/=float(nbgames)
statsnbplayeronewins*=100
print("Fin du QLearning !!!")
print("Percentage of winning games for player one : "+str(statsnbplayeronewins))
ttl = plt.text(3, 12,
"Sticks Qtable-Player 1 Qtable-Player 2"+
"\nNumber of games="+str(t)+"| epsilon1="+"{:.2f}".format(epsilon1)+
"| Remaining sticks="+str(12)+" and Action player="+str(0)
,horizontalalignment='right', verticalalignment='top', fontsize="small")
im1 = axarr[0].matshow(V, animated=True,vmin=0, vmax=1,cmap='binary')
im2 = axarr[1].matshow(Q1, animated=True,cmap='gray')
im3 = axarr[2].matshow(Q2, animated=True,cmap='gray')
listimages.append([im1,im2,im3,ttl])
f.colorbar(im3,ax=axarr[2])
Comment on the image above :¶
Let us see Qtable1 : Qtable for player 1¶
From state 8 (row 7) : player 1 will take 3 sticks. Player 2 will have only 5 sticks left and player 2 will lose. When only 5 sticks remains there is no way of winning the game¶
From state 7 (row 6) : player 1 will take 2 sticks. Player 2 will have only 5 sticks left and player 2 will lose. When only 5 sticks remains there is no way of winning the game¶
From state 8 (row 7) : player 1 will take 3 sticks. Player 2 will have only 5 sticks left and player 2 will lose. When only 5 sticks remains there is no way of winning the game¶
From state 6 (row 5) : player 1 will take 1 stick. Player 2 will have only 5 sticks left and player 2 will lose. When only 5 sticks remains there is no way of winning the game¶
This is the winning strategy. It has been really discovered¶
Now let us see how strong is player 1 on 10000 games against a random player¶
f, axarr = plt.subplots(1,3)
listimages=[] # Just for the animation
axarr[0].set_xlim([0, 1])
axarr[0].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[0].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[1].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[1].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[2].set_yticks(np.arange(1, 13, 1),minor=True)
axarr[2].set_yticklabels(np.arange(1, 13, 1),minor=True)
axarr[0].grid(b=True,which='both')
axarr[1].grid(b=True,which='both')
axarr[2].grid(b=True,which='both')
####################
# Q learning runnning
####################
V=np.ones((nbsticks,1))
print("S=",S)
print("S.shape=",S.shape)
print("A=",A)
print("A.shape=",A.shape)
print("Q1.shape=",Q1.shape)
print("Q1=",Q1)
print("Q2.shape=",Q1.shape)
print("V=",V.T)
print("V.shape=",V.shape)
#Let's define some hyper parameters
alpha=0.01 #learing rate
gamma=0.9 #Discount factor
epsilon1=0 #probability of exploration we want to get at the end
epsilon2=1 #probability of exploration we want to get at the end
nbgames=10000 # The number of trials, number of games
statsnbplayeronewins=0
for t in range(nbgames):
# run one game
V=np.ones((nbsticks,1))
playeronewins=OneGameLearning(A,Q1.copy(),Q2.copy(),V,epsilon1,epsilon2,alpha,gamma,listimages,t,False)
if playeronewins==1:
statsnbplayeronewins+=1
#print("t=",t, "epsilon1=",epsilon1," player ",playeronewins," wins")
statsnbplayeronewins/=float(nbgames)
statsnbplayeronewins*=100
print("Fin du QLearning !!!")
print("Percentage of winning games for player one : "+str(statsnbplayeronewins))
ttl = plt.text(3, 12,
"Sticks Qtable-Player 1 Qtable-Player 2"+
"\nNumber of games="+str(t)+"| epsilon1="+"{:.2f}".format(epsilon1)+
"| Remaining sticks="+str(12)+" and Action player="+str(0)
,horizontalalignment='right', verticalalignment='top', fontsize="small")
im1 = axarr[0].matshow(V, animated=True,vmin=0, vmax=1,cmap='binary')
im2 = axarr[1].matshow(Q1, animated=True,cmap='gray')
im3 = axarr[2].matshow(Q2, animated=True,cmap='gray')
listimages.append([im1,im2,im3,ttl])
f.colorbar(im3,ax=axarr[2])
