Reinforcement Learning by QLearning - The case of the Connect Four Game¶
In this notebook, we give an introduction to Q-Learning that is a framework to perform reinforcement learning. We provide an application to the connect four game.
This notebook is a follow-up of another notebook on Q-learning with an application to the sticks game. http://romain.raveaux.free.fr/document/ReinforcementLearningbyQLearningThestickgame.html
The goals :¶
- An introduction to Q-Learning
- An application to the connect four game
- Code in Python base Numpy and Matplotlib
Author : Romain Raveaux¶
Why a follow-up notebook¶
This notebook :http://romain.raveaux.free.fr/document/ReinforcementLearningbyQLearningThestickgame.html. This notebook is a follow-up of another notebook on Q-learning with an application to the sticks game.
In this notebook, we want to explore a more complex game than the Stick Game. We want to try the Connect Four game¶
Reinforcement Learning¶
We give some definitions that are mostly taken from (https://en.wikipedia.org/wiki/Reinforcement_learning).
Reinforcement learning (RL)
- is an area of machine learning concerned with how software agents ought to take actions in an environment so as to maximize some notion of cumulative reward.
- is one of three basic machine learning paradigms, alongside supervised learning and unsupervised learning.
Supervised Learning (SL) :
- It aims to learn a function $f$ that maps $\mathcal{X} \to \mathcal{Y}$ where $\mathcal{X}$ is the input domain and $\mathcal{Y}$ is the output domain. $f$ can be a composition of functions $f=f_1 \circ f_2 \circ \cdots f_k$. The learning stage must exploit pairs $(x \in \mathcal{X} ,y \in \mathcal{Y})$.
Reinforcement learning (RL)
- It is similar from SL in such a way that the goal is to learn a function $f$ that maps $\mathcal{X} \to \mathcal{Y}$. $f$ can also be a composition of functions $f=f_1 \circ f_2 \circ \cdots f_k$. In RL, sub-functions are also called actions.
- It differs from $\textbf{supervised learning}$ in that the learning stage exploits pairs $(x \in \mathcal{X} ,\overline{y} \in \overline{\mathcal{Y}})$. Where $\overline{\mathcal{Y}}$ is domain of incomplete outputs such that $\overline{y} \subset y$.
The typical framing of a Reinforcement Learning (RL) scenario: an agent takes actions in an environment, which is interpreted into a reward and a representation of the state, which are fed back into the agent. The environment is typically formulated as a Markov decision process (MDP)
Markov decision process¶
A Markov decision process is a 4-tuple ${\displaystyle (S,A,P,R)}$, where
- a set of environment and agent states, $S$;
- a set of actions, $A$, of the agent;
- $P={\displaystyle \Pr(s_{t+1}=s'\mid s_{t}=s,a_{t}=a)}$ is the probability of transition from state ${\displaystyle s}$ to state ${\displaystyle s'}$ under action ${\displaystyle a}$. $P: A \times S \to \mathbb{R}^S $
- ${\displaystyle R(s,s',a)}$ is the immediate reward after transition from ${\displaystyle s}$ to ${\displaystyle s'}$ with action ${\displaystyle a}$. $R: S \times S \times A \to \mathbb{R}$
Optimization problem with Markov decision process : Finding the best policy $\pi$¶
The core problem of Markov decision processes is to find a "policy" for the decision maker: a function $\pi$ that specifies the action $a=\pi(s)$ that the decision maker will choose when in state $s$. In the Markov decision process, we want to maximize the sum of the rewards over all time steps.
$$\pi^*=arg \max_{\pi} \sum_{t=1}^T R(s_t,s^*,\pi(a^*)) $$$$s^*,a^*=arg \max_{s',a} \Pr(s'\mid s_{t},a)$$The goal is to choose a policy $\pi$ that will maximize some cumulative function of the random rewards, typically the expected discounted sum over a potentially infinite horizon:
${\displaystyle E[\sum _{t=0}^{\infty }{\gamma ^{t}R(a_t,s_{t},s_{t+1})}]}$ (where we choose ${\displaystyle a_{t}=\pi (s_{t})}$, i.e. actions given by the policy). And the expectation is taken over ${\displaystyle s_{t+1}\sim P}({a_{t},s_{t},s_{t+1})}$ where $\gamma$ is the discount factor satisfying ${\displaystyle 0\leq \ \gamma \ \leq \ 1}$, which is usually close to 1.
Decision phase¶
Once a Markov decision process is combined with a policy in this way, this fixes the action for each state and the resulting combination behaves like a Markov chain (since the action chosen in state {\displaystyle s}s is completely determined by $\pi(s)$ and $\Pr(s_{t+1}=s'\mid s_{t}=s,a_{t}=a)$ reduces to $\Pr(s_{t+1}=s'\mid s_{t}=s)$, a Markov transition matrix).
Exploration and Exploitation¶
One of the challenges that arise in reinforcement learning, and not in other kinds of learning, is the trade-of between exploration and exploitation. To obtain a lot of reward, a reinforcement learning agent must prefer actions that it has tried in the past and found to be e↵ective in producing reward. But to discover such actions, it has to try actions that it has not selected before. The agent has to exploit what it has already experienced in order to obtain reward, but it also has to explore in order to make better action selections in the future.
Q-learning¶
The goal of Q-learning is to learn a policy $\pi(s)$, which tells an agent what action to take under what state.
Q-learning finds a policy that is optimal in the sense that it maximizes the expected value of the total reward over any and all successive steps, starting from the current state.
"Q" names the function that returns the reward used to provide the reinforcement and can be said to stand for the "quality" of an action taken in a given state.
$$Q: S \times A \to \mathbb{R} $$Before learning begins, $Q$ is initialized to a possibly arbitrary fixed value (chosen by the programmer). Then, at each time $t$ the agent selects an action $a_{t}$, observes a reward $r_{t}$, enters a new state $s_{t+1}$ (that may depend on both the previous state $s_{t}$ and the selected action), and $Q$ is updated. The core of the algorithm is a simple value iteration update, using the weighted average of the old value and the new information:
${\displaystyle Q^{new}(s_{t},a_{t})\leftarrow (1-\alpha )\cdot \underbrace {Q(s_{t},a_{t})} _{\text{old value}}+\underbrace {\alpha } _{\text{learning rate}}\cdot \overbrace {{\bigg (}\underbrace {r_{t}} _{\text{reward}}+\underbrace {\gamma } _{\text{discount factor}}\cdot \underbrace {\max _{a}Q(s_{t+1},a)} _{\text{estimate of optimal future value}}{\bigg )}} ^{\text{learned value}}}$ where ${\displaystyle r_{t}}$ is the reward received when moving from the state $s_{{t}}$ to the state $s_{t+1}$, and $\alpha$ is the learning rate $0<\alpha \leq 1$).
Discount factor $\gamma$¶
The discount factor $\gamma$ determines the importance of future rewards. A factor of 0 will make the agent "myopic" (or short-sighted) by only considering current rewards, i.e. $r_{t}$ (in the update rule above), while a factor approaching 1 will make it strive for a long-term high reward.
Exploring the action state space¶
In the learning phase, the state space of action $a_t$ must be explored. This is achieved by the concerp of exploration and exloitation.
Exploration and Exploitation¶
One of the challenges that arise in reinforcement learning, and not in other kinds of learning, is the trade-of between exploration and exploitation. To obtain a lot of reward, a reinforcement learning agent must prefer actions that it has tried in the past and found to be e↵ective in producing reward. But to discover such actions, it has to try actions that it has not selected before. The agent has to exploit what it has already experienced in order to obtain reward, but it also has to explore in order to make better action selections in the future.
Epsilon-greedy policy $\pi(s,\epsilon,rnd)$¶
$\epsilon$ is the probabiliy of exploration. Let $rnd$ be a random number between 0 and 1. $$\begin{eqnarray} \epsilon < rnd \quad& a^*=\pi(s)=random_a \, Q(s,a) &\quad Exploration \\ \epsilon \geq rnd \quad& a^*=\pi(s)= \max_a Q(s,a) & \quad Exploitation \\ \end{eqnarray}$$
Q-Learning Algorithm¶
The case of a 2-players game¶

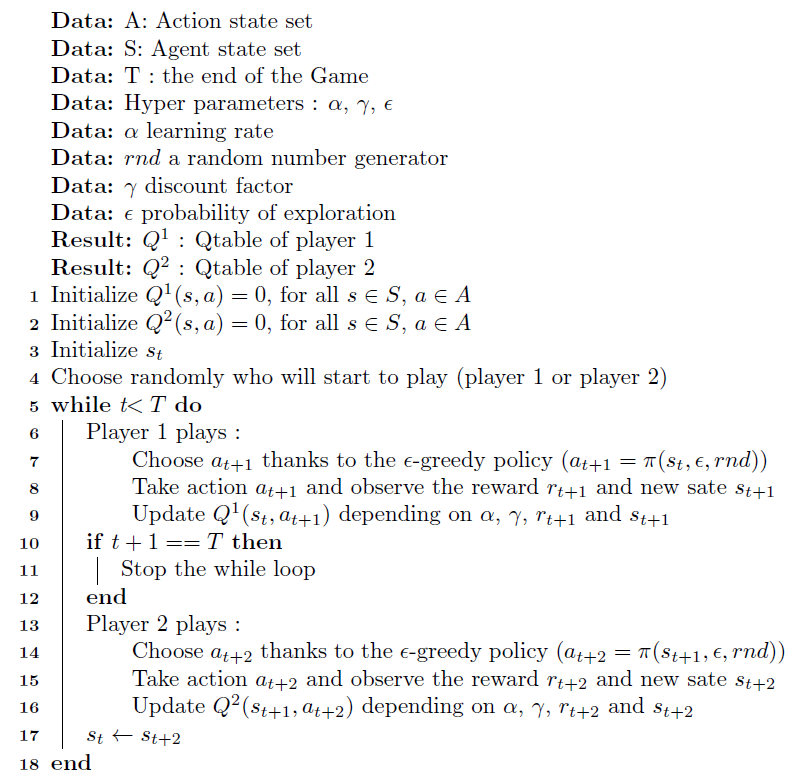

Q-Learning Algorithm for 2 players.¶
The key idea is to train two players at the time. Another key point is that the reward depends on the failure or the sucess of the other player. If player one made a move that led to the KO of the player two then player one move should be rewarded.
In the above algorithm, it is possible to make player 2 a random player by fixing $\epsilon$ to 1. Note that if player 2 is stupid then player 1 might not be very clever to win :-)
The connect four game¶
From : https://en.wikipedia.org/wiki/Connect_Four
Connect Four (also known as Four Up, Plot Four, Find Four, Four in a Row, Four in a Line, Drop Four, and Gravitrips (in Soviet Union)) is a two-player connection board game in which the players first choose a color and then take turns dropping one colored disc from the top into a seven-column, six-row vertically suspended grid. The pieces fall straight down, occupying the lowest available space within the column. The objective of the game is to be the first to form a horizontal, vertical, or diagonal line of four of one's own discs. Connect Four is a solved game. The first player can always win by playing the right moves.
Modeling the game¶
The board is modeled as a matrix M. M has 6 rows and 7 columns and so 42 cells. M[1,1]=1 to represent a red token. M[1,1]=2 to represent a yellow token. M[1,1]=0 to represent an empty place.
An action can take the following values : $A=\{1,2,3,...,7\}$. The index of the column to be played. As indices of arrays and matrices start at 0. We propose to change $A=\{0,2,3,...,6\}$.
The agent can take the following values : $S=\{1,\cdots, 42\}$. One value corresponds to one location (x,y) of the matrix M. As indices of arrays and matrices start at 0. We propose to change : $S=\{0,\cdots, 41\}$. State 0 corresponds to the location M[0,0], ..., State 1 corresponds to the location M[0,1] ....
The Q-table will be a matrix of size 42 X 7.
Discussion about this model :¶
The agent is only defined by its location in the board (x,y coordonates of the last token). This definition is quite blind. It means that the agent state does not reflect the entire state of the game. In this modelling, the agent state is very a narrow and a very local view of the game (the last move). This is a limitation of this approach. To overcome this problem, one can think about the following modelling :
- Each cell can take 3 values
- There is 42 cells in the board
- A vector of size $3^{42}$ can model the sate of the agent completly. $3^{42}= 1.0941899e+20$
- The Q-table will have the size of $3^{42}$ X 7. I m not sure it can even fit into memory.
The problem is then that the state space is very large and it is hard to explore it efficiently. The number of experiments (number of game simulations) will be very high.
Start to code¶
Let us define some import to manage matrices and plots¶
import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline
Let us define the board¶
nbrows=6
nbcolumns=7
M=np.zeros((nbrows,nbcolumns))
#Print the board
print("M.shape=",M.shape)
print("M\n",M)
#Plot the sticks
fig=plt.figure(1)
plt.matshow(M,cmap='hot')
plt.grid(b=True,which='both')
plt.title("The board")
We define the set of actions A, the set of agent states S and the Q table.¶
A = np.array([0,1,2,3,4,5,6])
S =[]
for i in range(0,nbrows*nbcolumns):
S.append(i)
S=np.array(S)
print("S.shape=",S.shape)
print("A.shape=",A.shape)
Q1=np.zeros((S.shape[0],A.shape[0]))
Q2=np.zeros((S.shape[0],A.shape[0]))
print("Q1.shape=",Q1.shape)
print("Q2.shape=",Q2.shape)
The board states.¶
Each cell of the matrix with coordinates (x,y) is a possible state of the agent. So we decided to create a 1D list with a all the states. It will be more convenient later on. Another implementation could be possibe.
def CreateBoardStates(nbrows,nbcolumns):
#boardstate is a list where all (x,y) are stored. The order is row major. It means that each line is concatainated.
boardstate=[]
count=0
for y in range(nbrows):
for x in range(nbcolumns):
boardstate.append((x,y))
return boardstate
boardstate=CreateBoardStates(nbrows,nbcolumns)
print("len(boardstate)=",len(boardstate))
print("boardstate\n",boardstate[0:5])
Let us define a function that can give the coordonnates (x,y) in function of the state¶
def getXYfromAgentState(agentstate,boardstate):
xy=boardstate[agentstate]
return xy
print("agentstate=0 so xy=",getXYfromAgentState(0,boardstate))
print("agentstate=1 so xy=",getXYfromAgentState(1,boardstate))
print("agentstate=2 so xy=",getXYfromAgentState(2,boardstate))
print("agentstate=3 so xy=",getXYfromAgentState(3,boardstate))
print("agentstate=4 so xy=",getXYfromAgentState(4,boardstate))
print("agentstate=5 so xy=",getXYfromAgentState(5,boardstate))
print("agentstate=6 so xy=",getXYfromAgentState(6,boardstate))
print("agentstate=7 so xy=",getXYfromAgentState(7,boardstate))
print("agentstate=8 so xy=",getXYfromAgentState(8,boardstate))
print("agentstate=35 so xy=",getXYfromAgentState(35,boardstate))
print("agentstate=41 so xy=",getXYfromAgentState(41,boardstate))
Get Board State from x,y¶
def getAgentStateFromXY(x,y,boardstate):
return boardstate.index((x,y))
print("agentstate=",getAgentStateFromXY(0,0,boardstate) ,"so xy=",(0,0))
print("agentstate=",getAgentStateFromXY(1,0,boardstate) ,"so xy=",(1,0))
print("agentstate=",getAgentStateFromXY(2,0,boardstate) ,"so xy=",(2,0))
print("agentstate=",getAgentStateFromXY(3,0,boardstate) ,"so xy=",(3,0))
print("agentstate=",getAgentStateFromXY(4,0,boardstate) ,"so xy=",(4,0))
print("agentstate=",getAgentStateFromXY(5,0,boardstate) ,"so xy=",(5,0))
print("agentstate=",getAgentStateFromXY(6,0,boardstate) ,"so xy=",(6,0))
print("agentstate=",getAgentStateFromXY(0,1,boardstate) ,"so xy=",(0,1))
print("agentstate=",getAgentStateFromXY(1,1,boardstate) ,"so xy=",(1,1))
print("agentstate=",getAgentStateFromXY(6,5,boardstate) ,"so xy=",(6,5))
Let's compute a new state from an action and the board¶
#we simulate the gravity : the token is fallen to the board.
def ComputeNewState(action,M,boardstate):
y=0
x=action
if M[y,x]!=0:
return -1,x,y
while y<M.shape[0] and M[y,x]==0:
y=y+1
if y>0:
y=y-1
newagentstate=getAgentStateFromXY(x,y,boardstate)
return newagentstate,x,y
M=np.zeros((nbrows,nbcolumns))
print(M.shape)
print("Let us place the tocken in the first column:")
newagentstate,x,y=ComputeNewState(0,M,boardstate)
print("newagentstate,x,y",newagentstate,x,y)
M[y,x]=1
#Plot the sticks
fig=plt.figure(1)
plt.matshow(M,cmap='gray')
plt.grid(b=True,which='both')
plt.title("The board")
print("Let us place the tocken in the first column:")
newagentstate,x,y=ComputeNewState(0,M,boardstate)
print("newagentstate,x,y",newagentstate,x,y)
M[y,x]=1
#Plot the sticks
fig=plt.figure(2)
plt.matshow(M,cmap='gray')
plt.grid(b=True,which='both')
plt.title("The board")
print("Let us place the tocken in the first column:")
newagentstate,x,y=ComputeNewState(0,M,boardstate)
print("newagentstate,x,y",newagentstate,x,y)
M[y,x]=1
#Plot the sticks
fig=plt.figure(2)
plt.matshow(M,cmap='gray')
plt.grid(b=True,which='both')
plt.title("The board")
print("Let us place the tocken in the first column:")
newagentstate,x,y=ComputeNewState(0,M,boardstate)
print("newagentstate,x,y",newagentstate,x,y)
M[y,x]=1
#Plot the sticks
fig=plt.figure(2)
plt.matshow(M,cmap='gray')
plt.grid(b=True,which='both')
plt.title("The board")
print("Let us place the tocken in the first column:")
newagentstate,x,y=ComputeNewState(0,M,boardstate)
print("newagentstate,x,y",newagentstate,x,y)
M[y,x]=1
#Plot the sticks
fig=plt.figure(2)
plt.matshow(M,cmap='gray')
plt.grid(b=True,which='both')
plt.title("The board")
print("Let us place the tocken in the first column:")
newagentstate,x,y=ComputeNewState(0,M,boardstate)
print("newagentstate,x,y",newagentstate,x,y)
M[y,x]=1
#Plot the sticks
fig=plt.figure(2)
plt.matshow(M,cmap='gray')
plt.grid(b=True,which='both')
plt.title("The board")
Check if a board represents a winning game¶
def Checkforoneplayer(M,idplayer):
COLUMN_COUNT=M.shape[1]
ROW_COUNT=M.shape[0]
# Check horizontal locations for win
for c in range(COLUMN_COUNT-3):
for r in range(ROW_COUNT):
if M[r][c] == idplayer and M[r][c+1] == idplayer and M[r][c+2] == idplayer and M[r][c+3] == idplayer:
return True
# Check vertical locations for win
for c in range(COLUMN_COUNT):
for r in range(ROW_COUNT-3):
if M[r][c] == idplayer and M[r+1][c] == idplayer and M[r+2][c] == idplayer and M[r+3][c] == idplayer:
return True
# Check positively sloped diaganols
for c in range(COLUMN_COUNT-3):
for r in range(ROW_COUNT-3):
if M[r][c] == idplayer and M[r+1][c+1] == idplayer and M[r+2][c+2] == idplayer and M[r+3][c+3] == idplayer:
return True
# Check negatively sloped diaganols
for c in range(COLUMN_COUNT-3):
for r in range(3, ROW_COUNT):
if M[r][c] == idplayer and M[r-1][c+1] == idplayer and M[r-2][c+2] == idplayer and M[r-3][c+3] == idplayer:
return True
return False
def CheckIfWinningGame(M,idplayer):
winner=False
#Checking for player one
winnerid=Checkforoneplayer(M,idplayer)
return winnerid
M=np.zeros((nbrows,nbcolumns))
M[0,1]=1
M[1,0]=0
M[2,0]=0
M[2,3]=1
M[1,2]=1
M[3,0]=0
M[3,4]=1
print(M)
print("And player one wins=",CheckIfWinningGame(M,1))
print("And player two wins=",CheckIfWinningGame(M,2))
def step(action,agentstate,M,playerid,boardstate):
# Let's take action
done=False
reward=0
newagentstate,xnew,ynew=ComputeNewState(action,M,boardstate)
#We check if we could move or not to a new state
#is there any room for a token
if newagentstate==-1:
done=True
reward=-1
return agentstate,reward,done
#we place the token to the new empty slot
M[ynew,xnew]=playerid
win=False
win=CheckIfWinningGame(M,playerid)
if win==True:
reward=1
done=True
return newagentstate,reward,done
M=np.zeros((nbrows,nbcolumns))
print(step(0,0,M,1,boardstate) )
print(M)
print(step(0,35,M,1,boardstate) )
print(M)
M=np.zeros((nbrows,nbcolumns))
fig = plt.figure() # just for display
state=0 #initial state of the agent
done=False
listimages=[] # just for display : store images
stepcounter=0
idplayer=1
while done != True: # Move until we reach the end of the game
action = np.random.choice(A) # Choose a random action
newtstate,reward,end=step(action,state,M,idplayer,boardstate) # Move according to the move
state=newtstate # update state
done=end # update are we done or not ?
stepcounter=stepcounter+1
print(action,state,newtstate,end) # print
im = plt.imshow(M, animated=True,cmap='gray') # display board
plt.grid(b=True,which='both')
listimages.append([im]) # display maze and agent
idplayer=idplayer+1
if idplayer==3:
idplayer=1
Let's animate¶
from matplotlib import animation, rc
from IPython.display import HTML
ani = animation.ArtistAnimation(fig, listimages, interval=2000, blit=True,
repeat_delay=100)
ani.save('RandomConnect4.mp4')
plt.show()
HTML(ani.to_html5_video())
Time to learn how to play¶
Code : Q-Learning¶
$\epsilon$-greedy policy¶
# Choose an action from the espilon greedy policy
def ChooseActionFromPolicy(A,epsilon,Q,state):
rnd=np.random.random()
if rnd<epsilon:
action = np.random.choice(A)
else:
action = Q[state,:].argmax()
return action
Update the Q Table¶
# Update the Q table (see equation above)
def UpdateQ(Q,state,action,newstate,reward,alpha,gamma):
firstterm=(1-alpha)*Q[state,action]
secondterm=gamma*Q[newstate,:].max()
thirdterm=alpha*(reward+secondterm)
res=firstterm+thirdterm
Q[state,action]=res
Play One Game and learn the Q table¶
# Debug function to do some display
def debugfunction(at,s,M,Q1,Q2,epsilon,t,player,listimages):
#code for display
ttl = plt.text(3, 43,
"Board Qtable-Player 1 Qtable-Player 2"+
"\nAction player "+str(player)+"="+str(at)+" and State ="+str(s)+
"| Number of games="+str(t)+"| epsilon="+"{:.2f}".format(epsilon)
,horizontalalignment='right', verticalalignment='top', fontsize="small")
#vmin=0, vmax=1,
im1 = axarr[0].matshow(M, animated=True,vmax=2,cmap='gray')
im2 = axarr[1].matshow(Q1, animated=True,cmap='gray')
im3 = axarr[2].matshow(Q2, animated=True,cmap='gray')
listimages.append([im1,im2,im3,ttl])
# Let's play one game
def OneGameLearning(A,Q1,Q2,M,epsilon1,espilon2,alpha,gamma,listimages,t,debug):
if debug==True:
debugfunction(-1,0,M,Q1,Q2,-1,t,-1,listimages)
s=0 #initial state
done = False
while done != True : # Move until a player lose
# Player one plays first
at1= ChooseActionFromPolicy(A,epsilon1,Q1,s) #choose an action
st1,rt1,end1=step(at1,s,M,1,boardstate) # Move according to the action
#Update Q1
UpdateQ(Q1,s,at1,st1,rt1,alpha,gamma)
#code for debug and display
if debug==True:
debugfunction(at1,st1,M,Q1,Q2,epsilon1,t,1,listimages)
#end code for debug and display
#player 1 has won
if end1==True and rt1>0:
return 1
#Bad move from player 1 so player 2 has won
if end1==True and rt1==-1:
return 2
# Player two plays
at2= ChooseActionFromPolicy(A,epsilon2,Q2,st1) #choose an action
st2,rt2,end2=step(at2,st1,M,2,boardstate) # Move according to the action
#Update Q2
UpdateQ(Q2,st1,at2,st2,rt2,alpha,gamma)
if debug==True and rt2==1:
debugfunction(at2,st2,M,Q1,Q2,epsilon2,t,2,listimages)
#player 2 has won
if end2==True and rt2>0:
return 2
#Bad move from player 2 so player 1 has won
if end2==True and rt2==-1:
return 1
s=st2
return 0
# the code for display
# we create figure for animation
f, axarr = plt.subplots(1,3)
listimages=[] # Just for the animation
axarr[0].grid(b=True,which='both')
axarr[1].grid(b=True,which='both')
axarr[2].grid(b=True,which='both')
#axarr[1].set_yticks(np.arange(0, nbrows*nbcolumns, 1),minor=True)
#axarr[1].set_yticklabels(np.arange(0, nbrows*nbcolumns, 1),minor=True)
#axarr[2].set_yticks(np.arange(0, nbrows*nbcolumns, 1),minor=True)
#axarr[2].set_yticklabels(np.arange(0, nbrows*nbcolumns, 1),minor=True)
####################
# Q learning runnning
####################
#Let's initialize the Q Table
Q1=np.zeros((S.shape[0],A.shape[0]))
Q2=np.zeros((S.shape[0],A.shape[0]))
#Let's initialize the matrix
boardstate=CreateBoardStates(nbrows,nbcolumns)
M=np.zeros((nbrows,nbcolumns))
print(M.shape)
print("S=",S)
print("S.shape=",S.shape)
print("A=",A)
print("A.shape=",A.shape)
print("Q1.shape=",Q1.shape)
print("Q2.shape=",Q2.shape)
print("M=",M)
print("M.shape=",M.shape)
#Let's define some hyper parameters
alpha=0.01 #learing rate
gamma=0.9 #Discount factor
epsilon1=0.3 #probability of exploration we want to get at the end
epsilon2=1 #probability of exploration we want to get at the end
nbgames=5 # The number of trials, number of games
statsnbplayeronewins=0
for t in range(nbgames):
# run one game
#Let's initialize the board to 0
M=np.zeros((nbrows,nbcolumns))
playeronewins=OneGameLearning(A,Q1,Q2,M,epsilon1,epsilon2,alpha,gamma,listimages,t,True)
if playeronewins==1:
statsnbplayeronewins+=1
print("t=",t, "epsilon1=",epsilon1," player ",playeronewins," wins")
statsnbplayeronewins/=float(nbgames)
statsnbplayeronewins*=100
print("Fin du QLearning !!!")
print("Percentage of winning games for player one : "+str(statsnbplayeronewins))
#f.colorbar(listimages[4][0], ax=axarr[2])
from matplotlib import animation, rc
from IPython.display import HTML
ani = animation.ArtistAnimation(f, listimages, interval=8000, blit=True,
repeat_delay=100)
ani.save('QlearningConnect4.mp4')
plt.show()
HTML(ani.to_html5_video())
Let us run 10 000 games. The goal is to see what is learnt. We want to see how the Qtables look like after 10 000 games. Player 2 is a random player¶
# the code for display
# we create figure for animation
f, axarr = plt.subplots(1,3)
listimages=[] # Just for the animation
axarr[0].grid(b=True,which='both')
axarr[1].grid(b=True,which='both')
axarr[2].grid(b=True,which='both')
####################
# Q learning runnning
####################
#Let's initialize the Q Table
Q1=np.zeros((S.shape[0],A.shape[0]))
Q2=np.zeros((S.shape[0],A.shape[0]))
#Let's initialize the matrix
boardstate=CreateBoardStates(nbrows,nbcolumns)
M=np.zeros((nbrows,nbcolumns))
print(M.shape)
print("S=",S)
print("S.shape=",S.shape)
print("A=",A)
print("A.shape=",A.shape)
print("Q1.shape=",Q1.shape)
print("Q2.shape=",Q2.shape)
print("M=",M)
print("M.shape=",M.shape)
#Let's define some hyper parameters
alpha=0.01 #learing rate
gamma=0.9 #Discount factor
epsilon1=0.3 #probability of exploration we want to get at the end
epsilon2=1 #probability of exploration we want to get at the end
nbgames=10000 # The number of trials, number of games
statsnbplayeronewins=0
for t in range(nbgames):
# run one game
#Let's initialize the board to 0
M=np.zeros((nbrows,nbcolumns))
playeronewins=OneGameLearning(A,Q1,Q2,M,epsilon1,epsilon2,alpha,gamma,listimages,t,False)
if playeronewins==1:
statsnbplayeronewins+=1
#print("t=",t, "epsilon1=",epsilon1," player ",playeronewins," wins")
statsnbplayeronewins/=float(nbgames)
statsnbplayeronewins*=100
print("Fin du QLearning !!!")
print("Percentage of winning games for player one : "+str(statsnbplayeronewins))
ttl = plt.text(3, 43,
"Board Qtable-Player 1 Qtable-Player 2"+
"\nAction player "+str(-1)+"="+str(-1)+" and State ="+str(-1)+
"| Number of games="+str(nbgames)+"| epsilon="+"{:.2f}".format(-1)
,horizontalalignment='right', verticalalignment='top', fontsize="small")
#vmin=0, vmax=1,
im1 = axarr[0].matshow(M, animated=True,cmap='gray')
im2 = axarr[1].matshow(Q1, animated=True,cmap='gray')
im3 = axarr[2].matshow(Q2, animated=True,cmap='gray')
listimages.append([im1,im2,im3,ttl])
f.colorbar(im3,ax=axarr[2])
# the code for display
# we create figure for animation
f, axarr = plt.subplots(1,3)
listimages=[] # Just for the animation
axarr[0].grid(b=True,which='both')
axarr[1].grid(b=True,which='both')
axarr[2].grid(b=True,which='both')
####################
# Q learning runnning
####################
print("S=",S)
print("S.shape=",S.shape)
print("A=",A)
print("A.shape=",A.shape)
print("Q1.shape=",Q1.shape)
print("Q2.shape=",Q2.shape)
print("M=",M)
print("M.shape=",M.shape)
#Let's define some hyper parameters
alpha=0.01 #learing rate
gamma=0.9 #Discount factor
epsilon1=0 #probability of exploration we want to get at the end
epsilon2=1 #probability of exploration we want to get at the end
nbgames=1 # The number of trials, number of games
statsnbplayeronewins=0
for t in range(nbgames):
# run one game
#Let's initialize the board to 0
M=np.zeros((nbrows,nbcolumns))
playeronewins=OneGameLearning(A,Q1.copy(),Q2.copy(),M,epsilon1,epsilon2,alpha,gamma,listimages,t,True)
if playeronewins==1:
statsnbplayeronewins+=1
#print("t=",t, "epsilon1=",epsilon1," player ",playeronewins," wins")
statsnbplayeronewins/=float(nbgames)
statsnbplayeronewins*=100
print("Percentage of winning games for player one : "+str(statsnbplayeronewins))
ttl = plt.text(3, 43,
"Board Qtable-Player 1 Qtable-Player 2"+
"\nAction player "+str(-1)+"="+str(-1)+" and State ="+str(-1)+
"| Number of games="+str(nbgames)+"| epsilon="+"{:.2f}".format(-1)
,horizontalalignment='right', verticalalignment='top', fontsize="small")
#vmin=0, vmax=1,
im1 = axarr[0].matshow(M, animated=True,cmap='gray')
im2 = axarr[1].matshow(Q1.copy(), animated=True,cmap='gray')
im3 = axarr[2].matshow(Q2.copy(), animated=True,cmap='gray')
listimages.append([im1,im2,im3,ttl])
f.colorbar(im3,ax=axarr[2])
Let us create a video¶
from matplotlib import animation, rc
from IPython.display import HTML
ani = animation.ArtistAnimation(f, listimages, interval=8000, blit=True,
repeat_delay=100)
ani.save('QlearningConnect4Play.mp4')
plt.show()
HTML(ani.to_html5_video())
Now let us see how strong is player 1 on 10000 games against a random player¶
# the code for display
# we create figure for animation
listimages=[] # Just for the animation
####################
# Q learning runnning
####################
print("S=",S)
print("S.shape=",S.shape)
print("A=",A)
print("A.shape=",A.shape)
print("Q1.shape=",Q1.shape)
print("Q2.shape=",Q2.shape)
print("M=",M)
print("M.shape=",M.shape)
#Let's define some hyper parameters
alpha=0.01 #learing rate
gamma=0.9 #Discount factor
epsilon1=0 #probability of exploration we want to get at the end
epsilon2=1 #probability of exploration we want to get at the end
nbgames=10000 # The number of trials, number of games
statsnbplayeronewins=0
for t in range(nbgames):
# run one game
#Let's initialize the board to 0
M=np.zeros((nbrows,nbcolumns))
playeronewins=OneGameLearning(A,Q1.copy(),Q2.copy(),M,epsilon1,epsilon2,alpha,gamma,listimages,t,False)
if playeronewins==1:
statsnbplayeronewins+=1
#print("t=",t, "epsilon1=",epsilon1," player ",playeronewins," wins")
statsnbplayeronewins/=float(nbgames)
statsnbplayeronewins*=100
print("Percentage of winning games for player two : "+str(statsnbplayeronewins))
Conclusion¶
Player 1 could have won all the games because Connect Four is a solved game. But the learning process was not good enough to discover the winning strategy.¶
Why ? The modeling¶
The agent is only defined by a location in the board (x,y coordonates of the last token). This definition is quite blind. It means that the agent state does not reflect the entire state of the game. In this modelling, the agent state is very a narrow and a very local view of the game (the last move). This is a limitation of this approach.
A solution : Deep Q learning¶
Get rid off the Qtable and replace it by Deep Neural Network
